    BH18

    The BH18 Beacon Warning Light features TIR optics, single color configuration, and black bezel. Dimensions: not specified. Operating voltage: 10–33 V DC, current: 2.2A @12V DC / 1.2A @24V DC. LED colors: Blue, Red, Orange. Flash patterns: 10. LEDs: 3W × 18 pcs. Lens material: PC. Mounting options: Bolts, DIN, Magnetic Mount. Protection: IP67. Operating temperature: -30℃ to +70℃. Certifications: ECE R10, ECE R65 Class 2, SAE J595 Class 1. Warranty: 3 years.
    contact us

Description

       Powerful beacon warning light with TIR optics for optimized light output.

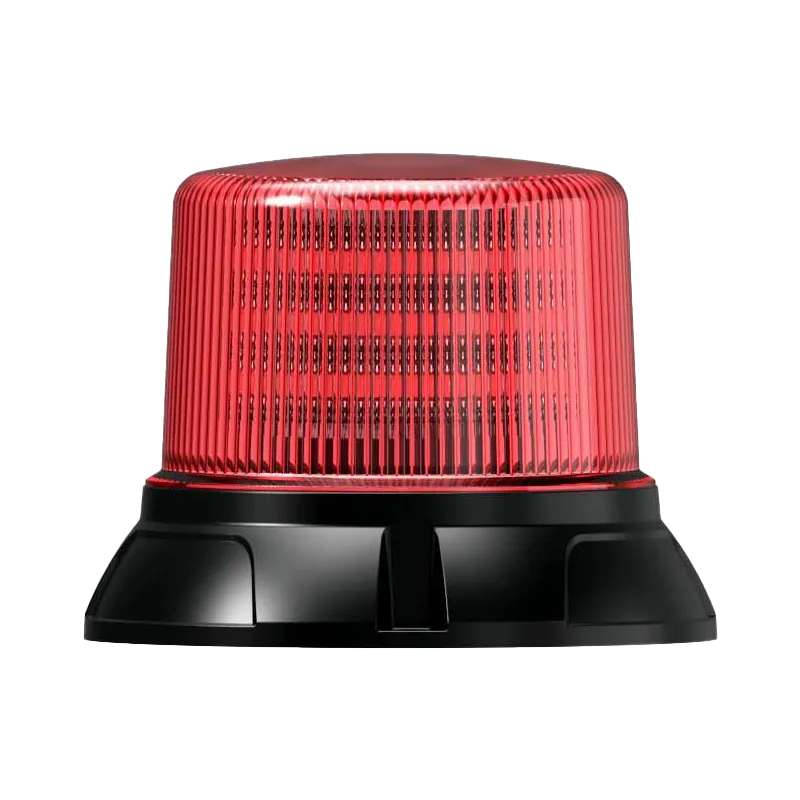

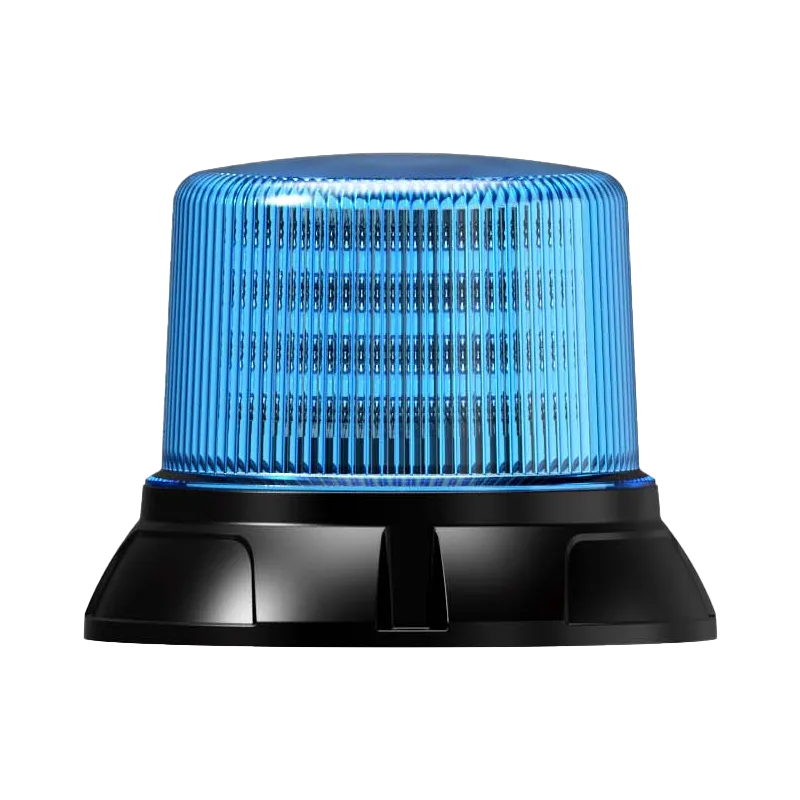

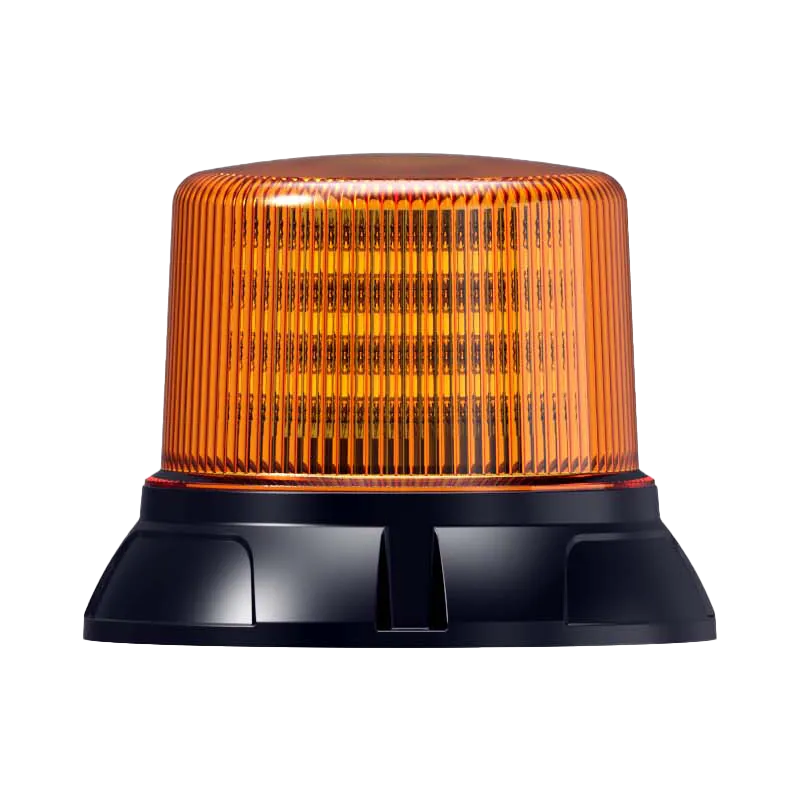

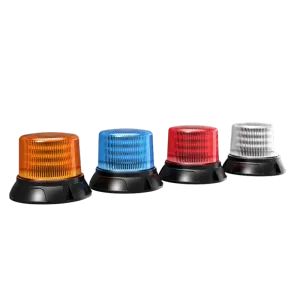

       Single color configuration with LEDs in Blue, Red, or Orange.
       High-output LEDs: 3W × 18 pcs for reliable visibility.
       Wide voltage range: 10–33 V DC, current draw 2.2A @12V / 1.2A @24V.
       Flash patterns: 10 selectable modes for versatile signaling.
       Mounting flexibility: Bolts, DIN, or Magnetic mount for secure installation.
       Durable housing with PC lens and IP67 rating for all-weather use.
       Operating temperature: -30℃ to +70℃ for extreme conditions.
       Certified: ECE R10, ECE R65 Class 2, SAE J595 Class 1.
       Warranty: 3-year ensures reliable performance over time.

Specifications

Product NameBH18
CategoriesBeacons
Dimensions (L×W×H)mm
FunctionWarning Light
Bezel Colour
OpticalTIR
Color TypeSingle
Operating Voltage10-33V DC
Maximum Current2.2A@12VDC / 1.2A@24VDC
Color ModesBlue, Red, Orange
Flash Patterns10
LED Quantity3W*18PCS
Lens MaterialPC
Mounting OptionsBolts, DIN, Magnetic Mount
IP Rating67
Operating Temperature-30℃—+70℃
CertificationsECE R10, ECE R65 CLASS2, SAE J595 CLASS1
Warranty3-year
