E6
-
WhatsApp：https://wa.me/8618694087250
E6

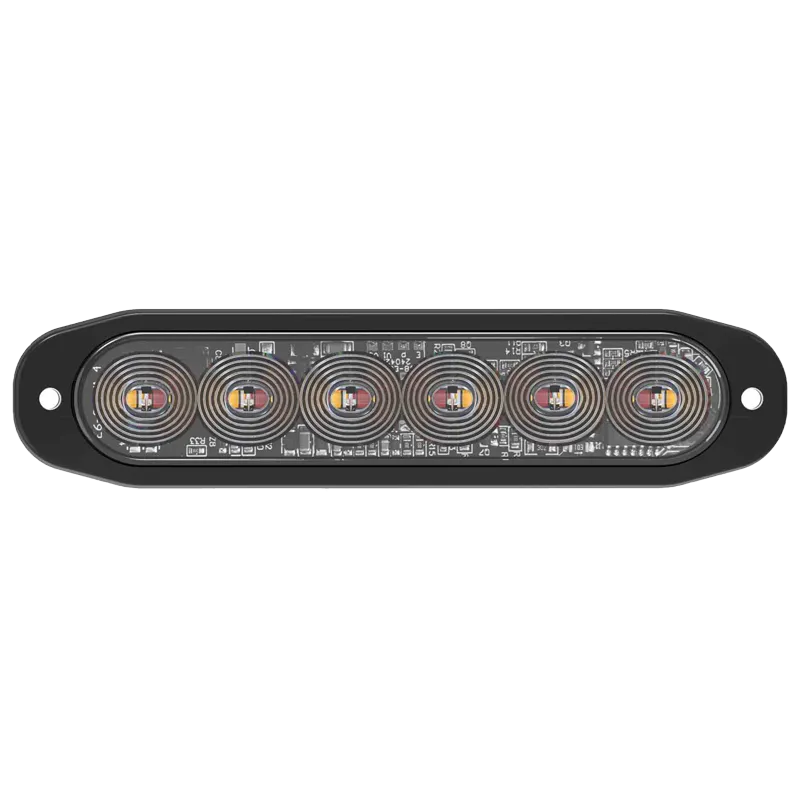

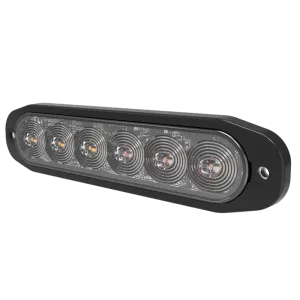

All-in-one warning module, 118×25×7 mm, black bezel, 6/12/18 LEDs (3W each). Operating voltage: 10–33 V DC, current: 0.62 A @12V / 0.35 A @24V. Optical: Fresnel. Lens: PC. Surface or bracket mounting, IP67 + 69K, temperature: -30℃ to +70℃. Certified ECE R10, ECE R65 Class 2, SAE J595 Class 1. Available in blue, red, amber, or white. 3-year warranty.
contact us
Description
Maximum road safety: ECE R65 Class 2 & SAE J595 Class 1 certified.
Ultra-slim design: Only 7 mm thick with stylish black bezel.
High-output LEDs: 3W each, configurable as single, dual, or triple colors.
Sharp light output: Fresnel with up to 20 selectable flash patterns.
Rugged & reliable: IP67+69K waterproof, works from -30℃ to +70℃.
Easy installation: Surface or bracket mounting.
Peace of mind: 3-year warranty.
Ultra-slim design: Only 7 mm thick with stylish black bezel.
High-output LEDs: 3W each, configurable as single, dual, or triple colors.
Sharp light output: Fresnel with up to 20 selectable flash patterns.
Rugged & reliable: IP67+69K waterproof, works from -30℃ to +70℃.
Easy installation: Surface or bracket mounting.
Peace of mind: 3-year warranty.
Specifications
| Product Name | E6 |
|---|---|
| Categories | Directionals, E6, Modules |
| Dimensions (L×W×H)mm | 118×25×7 |
| Function | Warning Light |
| Bezel Colour | Black |
| Optical | Fresnel |
| Color Type | Single, Dual, Triple |
| Operating Voltage | 10–33 V DC |
| Maximum Current | 0.62A@12VDC / 0.35A@24VDC |
| Color Modes | Blue, Red, Orange, White |
| Flash Patterns | Single:20 / Dual, Triple:12 |
| LED Quantity | 3W*6PCS / 3W*12PCS / 3W*18PCS |
| Lens Material | PC |
| Mounting Options | Surface, Bracket |
| IP Rating | 67+69K |
| Operating Temperature | -30℃—+70℃ |
| Certifications | ECE R10, ECE R65 CLASS2, SAE J595 CLASS1 |
| Warranty | 3-year |
