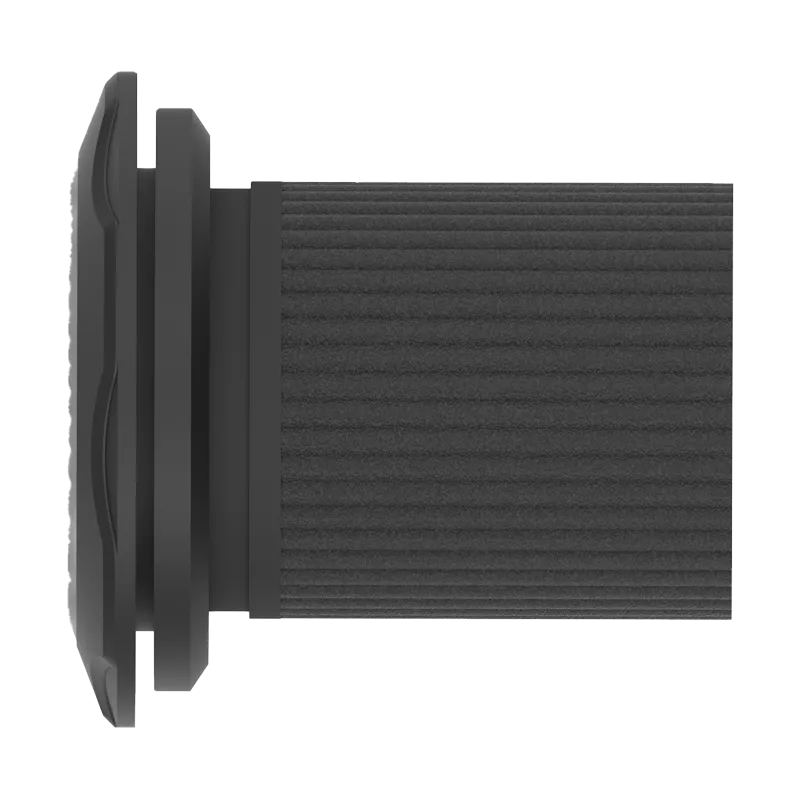

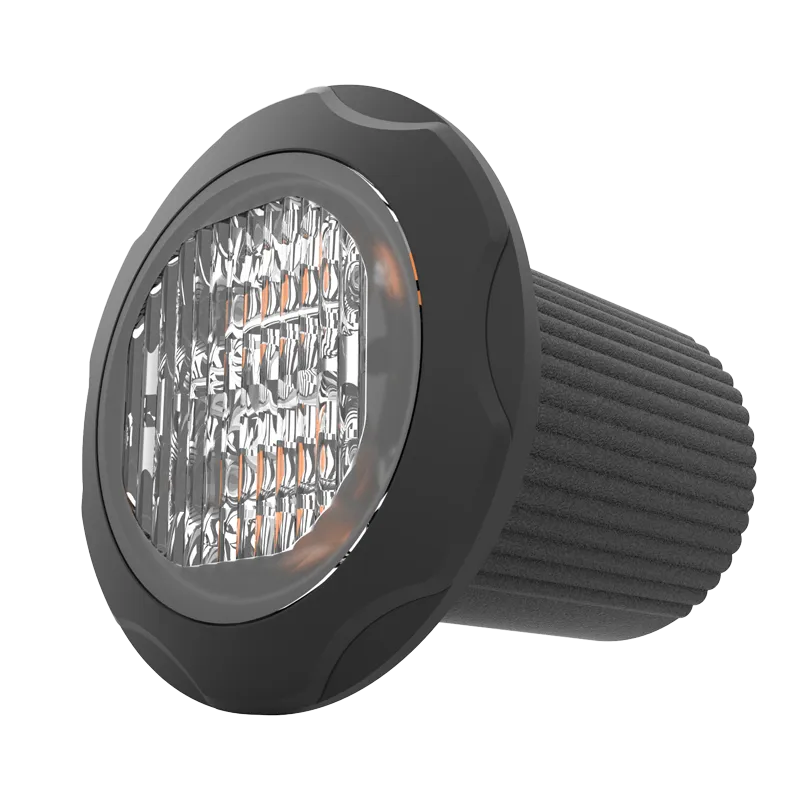

All-in-one covert hideaway warning module, 36×36×36 mm, black bezel, Linear optical design, available in single or dual color options. Operating voltage: 10–33 V DC, maximum current: 0.6 A @12V / 0.3 A @24V. Flash patterns: single/dual color: 12. LED quantity: 3W × 4 pcs / 3W × 8 pcs. Lens material: PC. Mounting: Flush Mount. Protection: IP67. Operating temperature: -30℃ to +70℃. Certified: ECE R10, ECE R65 Class 1, SAE J595 Class 1. Warranty: 3 years. Colors: blue, red, orange, white.
contact us
Description
All-in-one covert hideaway warning module, 36×36×36 mm, with sleek black bezel.
Linear optical system for uniform light output.
Single or dual color configuration available (blue, red, orange, white).
Wide voltage range: 10–33 V DC, current 0.6 A @12V / 0.3 A @24V.
Flash patterns: single/dual color 12.
high-intensity LEDs: 3W × 4 pcs / 3W × 8 pcs.
Durable PC lens with IP67 protection.
Mounting option: Flush Mount.
Certified: ECE R10, ECE R65 Class 1, SAE J595 Class 1.
Warranty: 3 years.
Linear optical system for uniform light output.
Single or dual color configuration available (blue, red, orange, white).
Wide voltage range: 10–33 V DC, current 0.6 A @12V / 0.3 A @24V.
Flash patterns: single/dual color 12.
high-intensity LEDs: 3W × 4 pcs / 3W × 8 pcs.
Durable PC lens with IP67 protection.
Mounting option: Flush Mount.
Certified: ECE R10, ECE R65 Class 1, SAE J595 Class 1.
Warranty: 3 years.
Specifications
| Product Name | TINYBLAST |
|---|---|
| Categories | Covert Hideaway, Modules |
| Dimensions (L×W×H)mm | 36*36*36 |
| Function | Warning Light |
| Bezel Colour | Black |
| Optical | Linear |
| Color Type | Single, Dual |
| Operating Voltage | 10-33V DC |
| Maximum Current | 0.6A@12VDC / 0.3A@24VDC |
| Color Modes | Blue, Red, Orange, White |
| Flash Patterns | Single/Dual Color:12 |
| LED Quantity | 3W × 4PCS / 3W × 8PCS |
| Lens Material | PC |
| Mounting Options | Flush Mount |
| IP Rating | 67 |
| Operating Temperature | -30℃—+70℃ |
| Certifications | ECE R10, ECE R65 Class 1, SAE J595 Class 1 |
| Warranty | 3-year |
