Description

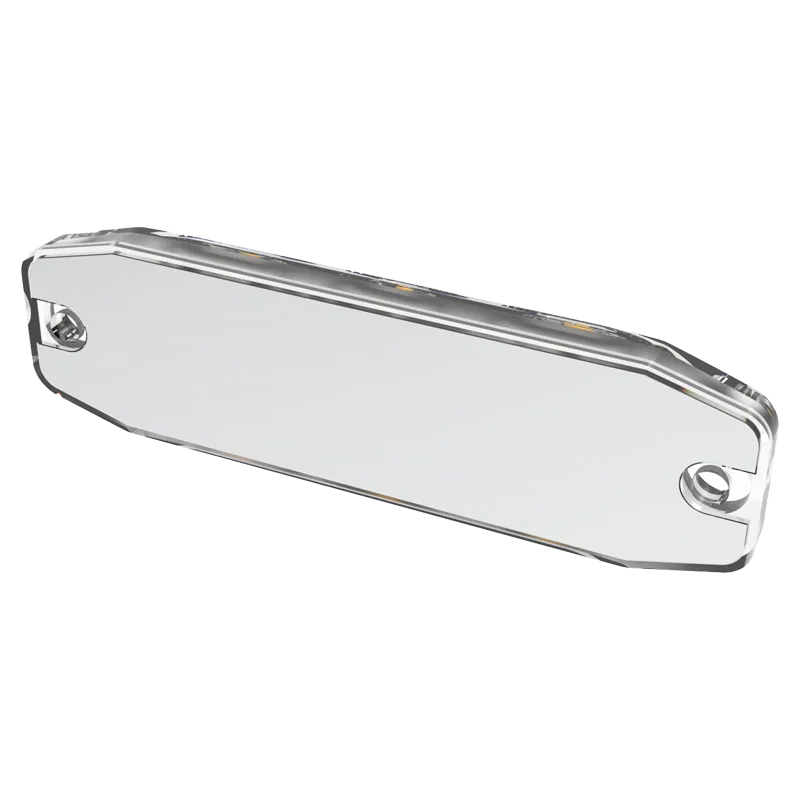

All-in-one warning module, 88×25×7 mm, black bezel, Fresnel optical design, available in single color.
Operating voltage: 10–33 V DC, maximum current: 0.42 A @12V / 0.25 A @24V.
Flash patterns: single 20.

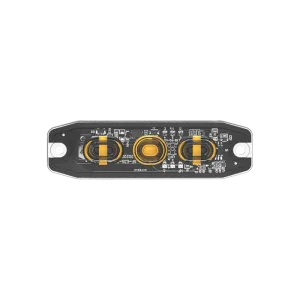

LED quantity: 5W × 3 pcs.
Lens material: PC.
Mounting: 3M Quick Surface / Bracket.
Protection: IP67.
Operating temperature: -30℃ to +70℃.
Certified: ECE R10, ECE Class 1, SAE J595.
Warranty: 3 years.
Colors: blue, red, orange, white.
Specifications
| Product Name | E3 |
|---|---|
| Categories | Directionals, E3, Modules |
| Dimensions (L×W×H)mm | 88*25*7 |
| Function | Warning Light |
| Bezel Colour | Black |
| Optical | Fresnel |
| Color Type | Single |
| Operating Voltage | 10-33V DC |
| Maximum Current | 0.42A@12VDC / 0.25A@24VDC |
| Color Modes | Blue, Red, Orange, White |
| Flash Patterns | Single: 20 |
| LED Quantity | 5W × 3PCS |
| Lens Material | PC |
| Mounting Options | 3M Quick Surface / Bracket |
| IP Rating | 67 |
| Operating Temperature | -30℃—+70℃ |
| Certifications | ECE R10, ECE Class 1, SAE J595 |
| Warranty | 3-year |
