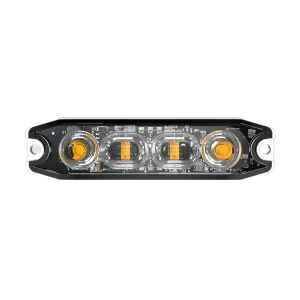

E4

    E4

    All-in-one warning module, 96×25×7 mm, black bezel, Fresnel optical design, available in single or split color options. Operating voltage: 10–33 V DC, maximum current: 0.42 A @12V / 0.25 A @24V. Flash patterns: single 20. LED quantity: 3W × 4 pcs. Lens material: PC. Mounting: 3M Quick Surface / Bracket. Protection: IP67. Operating temperature: -30℃ to +70℃. Certified: ECE R10, ECE Class 1, SAE J595. Warranty: 3 years. Colors: blue, red, orange, white.
    contact us

Description

Slim all-in-one warning module, 96×25×7 mm, with sleek black bezel

Fresnel optical system for sharp and uniform light output

Single or split color configuration available (blue, red, orange, white)

Wide voltage range: 10–33 V DC, low power consumption (0.42 A @12V / 0.25 A @24V)

Flash patterns: 20

high-intensity LEDs: 3W × 4 pcs

Durable PC lens with IP67 protection

Flexible mounting options: 3M Quick Surface or Bracket

Certified: ECE R10, ECE Class 1, SAE J595

Warranty: 3 years

Specifications

Product NameE4
CategoriesDirectionals, E4, Modules
Dimensions (L×W×H)mm96*25*7
FunctionWarning Light
Bezel ColourBlack
OpticalFresnel
Color TypeSingle, Split
Operating Voltage10-33V DC
Maximum Current0.42A@12VDC / 0.25A@24VDC
Color ModesBlue, Red, Orange, White
Flash PatternsSingle: 20
LED Quantity3W × 4PCS
Lens MaterialPC
Mounting Options3M Quick Surface / Bracket
IP Rating67
Operating Temperature-30℃—+70℃
CertificationsECE R10, ECE Class 1, SAE J595
Warranty3-year
