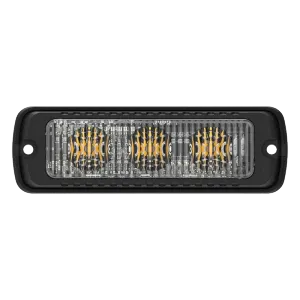

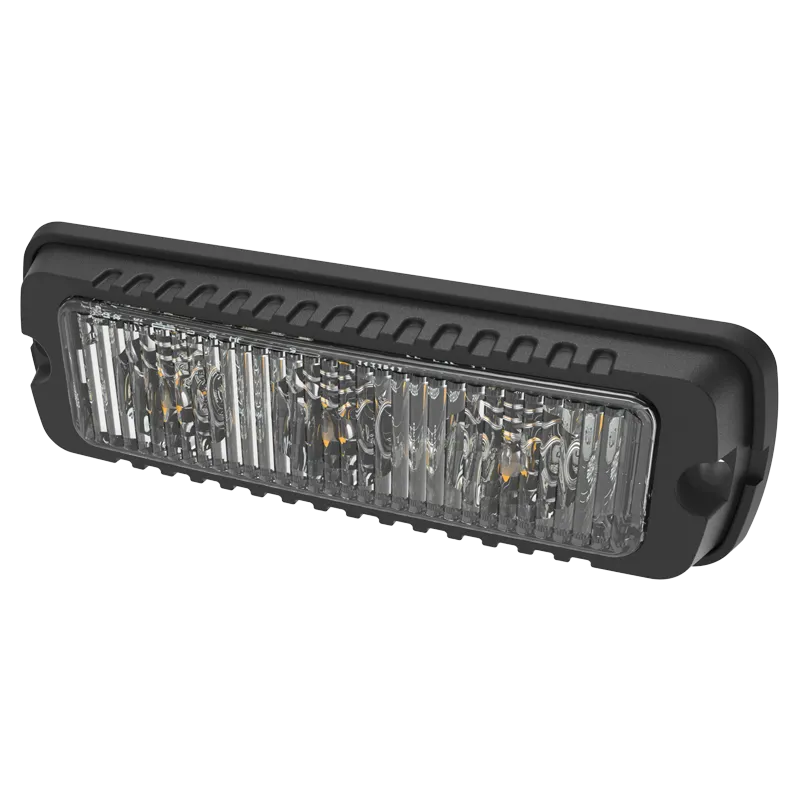

All-in-one warning module, 86×25.4×9 mm, black bezel, TIR optical design, available in single color. Operating voltage: 10–33 V DC, maximum current: 0.42 A @12V / 0.25 A @24V. Flash patterns: 14. LED quantity: 3W × 3 pcs. Lens material: PC. Mounting: surface mount. Protection: IP67. Operating temperature: -30℃ to +70℃. Certified: ECE R10, ECE R65 Class 1, SAE J595 Class 2. Warranty: 3 years. Colors: blue, red, orange, white.
contact us
Description
Compact all-in-one warning module, 86×25.4×9 mm, with sleek black bezel.
TIR optical system for focused and precise light output.
Single color configuration available (blue, red, orange, white).
Wide voltage range: 10–33 V DC, low power consumption (0.42 A @12V / 0.25 A @24V).
Flash patterns: 14.
high-intensity LEDs: 3W × 3 pcs.
Durable PC lens with IP67 protection.
Flexible mounting option: surface mount.
Certified: ECE R10, ECE R65 Class 1, SAE J595 Class 2.
Warranty: 3 years.
TIR optical system for focused and precise light output.
Single color configuration available (blue, red, orange, white).
Wide voltage range: 10–33 V DC, low power consumption (0.42 A @12V / 0.25 A @24V).
Flash patterns: 14.
high-intensity LEDs: 3W × 3 pcs.
Durable PC lens with IP67 protection.
Flexible mounting option: surface mount.
Certified: ECE R10, ECE R65 Class 1, SAE J595 Class 2.
Warranty: 3 years.
Specifications
| Product Name | Pluse3 |
|---|---|
| Categories | Directionals, Pluse3, Modules |
| Dimensions (L×W×H)mm | 86*25.4*9 |
| Function | Warning Light |
| Bezel Colour | Black |
| Optical | TIR |
| Color Type | Single |
| Operating Voltage | 10-33V DC |
| Maximum Current | 0.42A@12VDC / 0.25A@24VDC |
| Color Modes | Blue, Red, Orange, White |
| Flash Patterns | 14 |
| LED Quantity | 3W × 3PCS |
| Lens Material | PC |
| Mounting Options | Surface Mount |
| IP Rating | 67 |
| Operating Temperature | -30℃—+70℃ |
| Certifications | ECE R10, ECE R65 Class 1, SAE J595 Class 2 |
| Warranty | 3-year |
